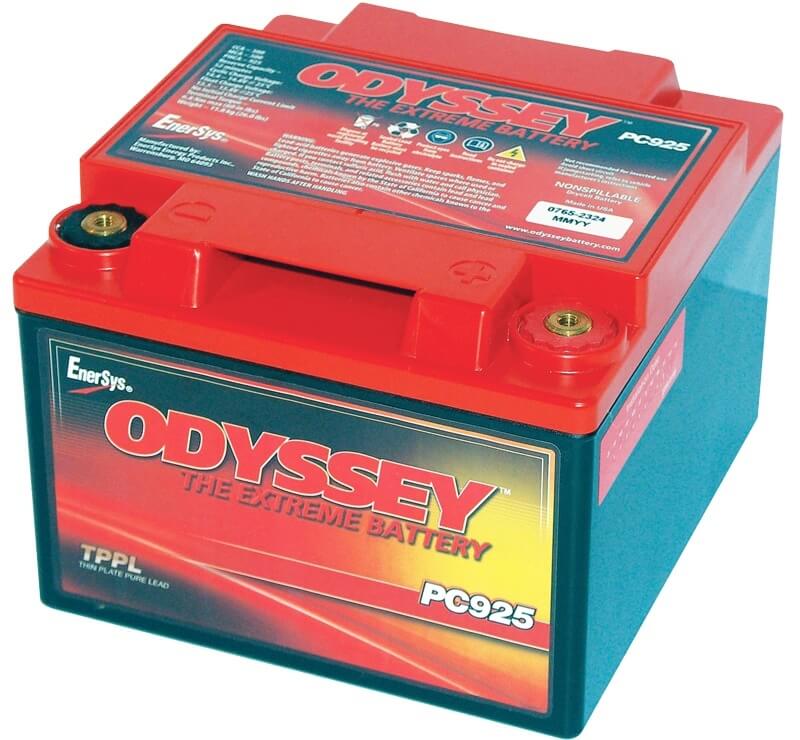

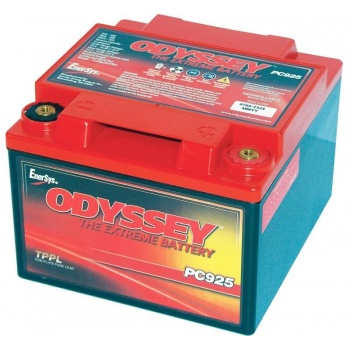

Odyssey PC925 ODS-AGM28L

$730.00 each Weight: 11.8 kg
Width: 179.1 mm
Length: 168.7 mm
Height: 126 mm

PC925 is without the metal jacket or terminals.

Pulse Amps	Cold Cranking Amps	Hot Cranking Amps	Marine Cranking Amps	Nm max torque on terminal	mΩ Internal Resistance	Short Circuit Current
900	330	610	480	6.8	5	2400

28Ah @ 20hr rate - that's 1.4A for 20 hours until the battery voltage is 10.5V
27Ah @ 10hr rate - that's 2.7A for 10 hours until the battery voltage is 10.5V

Reserve Capacity 48 minutes at 25A discharge

Automotive Terminals are available at the time of purchase for this model for $15.

Terminal Features include:
Encapsulated M6 bolt fastened using an M5 Allen key
Coarse thread Heli-coil inserts and bolt supplied so you can fasten large eyelets to the top of the terminal like a marine or dual purpose terminal

Adding terminals to this battery will make it a PC925T

PRODUCT CODE UPDATES

We have seen substantial growth in the range of Odyssey batteries (from EnerSys), with this development we have seen both an increase in the products available but also a change in the product codes and the marketing segmentation.

As an example, here in New Zealand, we originally only imported the PC680MJT model (Metal Jacket and Terminals) it was commonly referred to as PC680 battery. Later we offered these model batteries without the MJT, as being popular with the Aviation industry and imported Aircraft industry. The same has happened with the PC925 variations.

Many models included the Extreme Series tagline, Performance Series, or PowerSport to help define applications, but people use batteries for so many applications this description wasn't enough. With the introduction of new BCI sizes like the 48-720 with traditional housings and mounting feet wedges for OEM installations and DIN sizes.

So, to give you the most up-to-date information on the changes to the battery identifiers now, please review the following information to help you understand these changes.
However, if you have any question’s please feel free to contact us.

Odyssey models - Product codes and Polarity
