Odyssey PC625 ODS-AGM16CL

$535.00 each Weight: 6 kg
Width: 99.1 mm
Length: 170.2 mm
Height: 175 mm

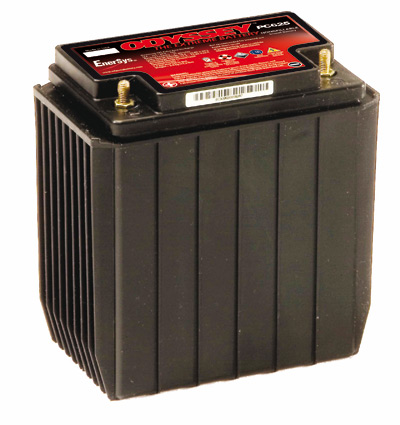

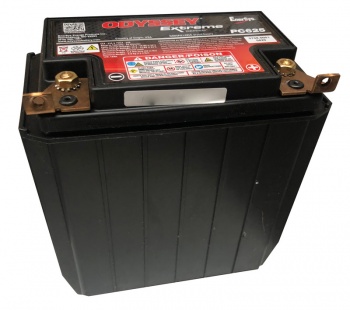

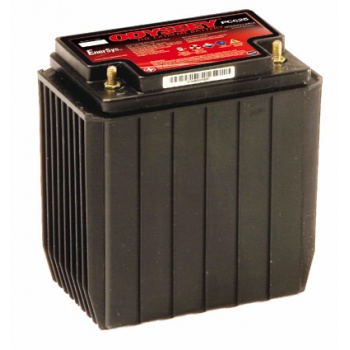

Jetski replacement YB16CL now with vertical terminals the same as PC535. See new picture with a brass plate pic. Old terminals also are shown in second picture for comparison which uses a studed thread.

Pulse Amps	Cold Cranking Amps	Hot Cranking Amps	Marine Cranking Amps	Nm max torque on terminal	mΩ Internal Resistance	Short Circuit Current
530	200	420	340	4.5	7	1800

18Ah @ 20hr rate - that's 0.9A for 20 hours until the battery voltage is 10.5V
17Ah @ 10hr rate - that's 1.7A for 10 hours until the battery voltage is 10.5V

Reserve Capacity 27 minutes at 25A discharge

Terminal Features include:

SIDE M6 Terminals

PRODUCT CODE UPDATES

We have seen substantial growth in the range of Odyssey batteries (from EnerSys), with this development we have seen both an increase in the products available but also a change in the product codes and the marketing segmentation.

As an example, here in New Zealand, we originally only imported the PC680MJT model (Metal Jacket and Terminals) it was commonly referred to as PC680 battery. Later we offered these model batteries without the MJT, as being popular with the Aviation industry and imported Aircraft industry. The same has happened with the PC925 variations.

Many models included the Extreme Series tagline, Performance Series, or PowerSport to help define applications, but people use batteries for so many applications this description wasn't enough. With the introduction of new BCI sizes like the 48-720 with traditional housings and mounting feet wedges for OEM installations and DIN sizes.

So, to give you the most up-to-date information on the changes to the battery identifiers now, please review the following information to help you understand these changes.
However, if you have any question’s please feel free to contact us.

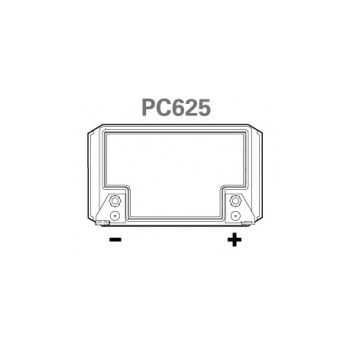

Odyssey models - Product codes and Polarity
