Odyssey PC1800FT ODS-AGM470FT

$1,699.00 each Weight: 60 kg
Width: 125 mm
Length: 581 mm
Height: 316.5 mm

Pulse Amps	Cold Cranking Amps	Hot Cranking Amps	Marine Cranking Amps	Nm max torque on terminal	mΩ Internal Resistance	Short Circuit Current
1800	1300	1600	1450	9.0	3.3	3800

214Ah @ 20hr rate - that's 10.7A for 20 hours until the battery voltage is 10.5V

190Ah @ 10hr rate - that's 9.5A for 10 hours until battery voltage is 10.5V

Reserve capacity 475 minutes at 25A discharge

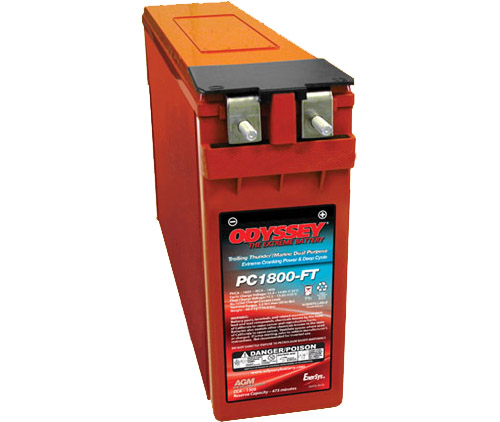

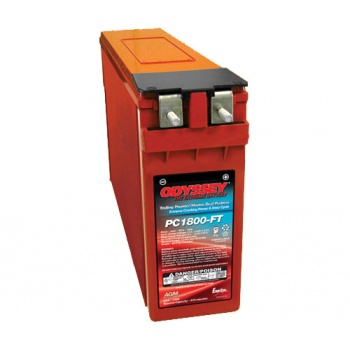

Best installed in pictured orientation.

This battery is also part of the PowerSafe UPS EON range advertised as a 190FT (10hr Rate). Also used in Marine installations where the front terminal access is ideal for quick onboard easy access checking of terminal voltages.

Being 214Ah, it's within the capacity of useful energy for deep cycle applications, being thin plate pure lead this battery also has high power pulse output making it ideal for bow thruster, winch, high power inverter applications or dual-purpose house bank and starting bank duties.

PRODUCT CODE UPDATES

We have seen substantial growth in the range of Odyssey batteries (from EnerSys), with this development we have seen both an increase in the products available but also a change in the product codes and the marketing segmentation.

As an example, here in New Zealand, we originally only imported the PC680MJT model (Metal Jacket and Terminals) it was commonly referred to as PC680 battery. Later we offered these model batteries without the MJT, as being popular with the Aviation industry and imported Aircraft industry. The same has happened with the PC925 variations.

Many models included the Extreme Series tagline, Performance Series, or PowerSport to help define applications, but people use batteries for so many applications this description wasn't enough. With the introduction of new BCI sizes like the 48-720 with traditional housings and mounting feet wedges for OEM installations and DIN sizes.

So, to give you the most up-to-date information on the changes to the battery identifiers now, please review the following information to help you understand these changes.
However, if you have any question’s please feel free to contact us.

Odyssey models - Product codes and Polarity
