Odyssey ODP-AGM25 ODP-AGM25

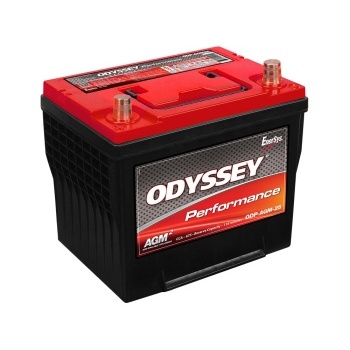

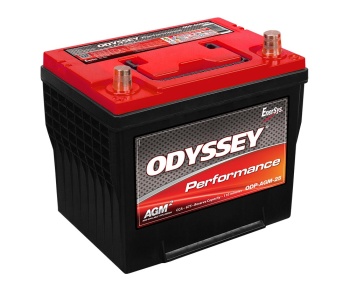

odp-agm25-overhead

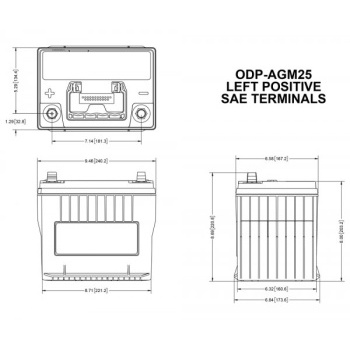

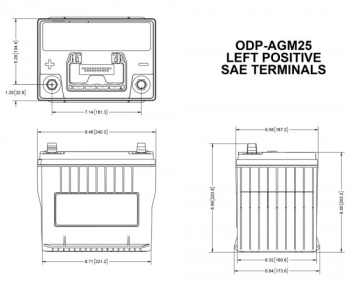

odp-agm25-overheaddwg-odp-agm25-600x500
$755.00 each Weight: 22.7 kg
 Width: 175 mm
 Length: 241 mm
 Height: 224 mm

This model also comes with the terminal configuration reversed. See Odyssey ODP-AGM35

Pulse
Hot Cranking
Amps		 Cold
Cranking
Amps		 Hot
Cranking
Amps		 Marine
Cranking
Amps		 Nm max
torque on
terminal		 mΩ
Internal
Resistance		 Short
Circuit
Current
1200 765 900 850 NA 4.3 1850



59Ah @ 20hr rate - that's 3A for 20 hours until the battery voltage is 10.5V
55Ah @ 10hr rate - that's 5.5A for 10 hours until the battery voltage is 10.5V

Reserve Capacity 117 minutes at 25A discharge

BCI Group 25

Automotive Terminals are non-removable on this model of Odyssey Battery.

PRODUCT CODE UPDATES

We have seen substantial growth in the range of Odyssey batteries (from EnerSys), with this development we have seen both an increase in the products available but also a change in the product codes and the marketing segmentation.

As an example, here in New Zealand, we originally only imported the PC680MJT model (Metal Jacket and Terminals) it was commonly referred to as PC680 battery. Later we offered these model batteries without the MJT, as being popular with the Aviation industry and imported Aircraft industry. The same has happened with the PC925 variations.

Many models included the Extreme Series tagline, Performance Series, or PowerSport to help define applications, but people use batteries for so many applications this description wasn't enough. With the introduction of new BCI sizes like the 48-720 with traditional housings and mounting feet wedges for OEM installations and DIN sizes.

So, to give you the most up-to-date information on the changes to the battery identifiers now, please review the following information to help you understand these changes.
However, if you have any question’s please feel free to contact us.

Odyssey models - Product codes and Polarity
